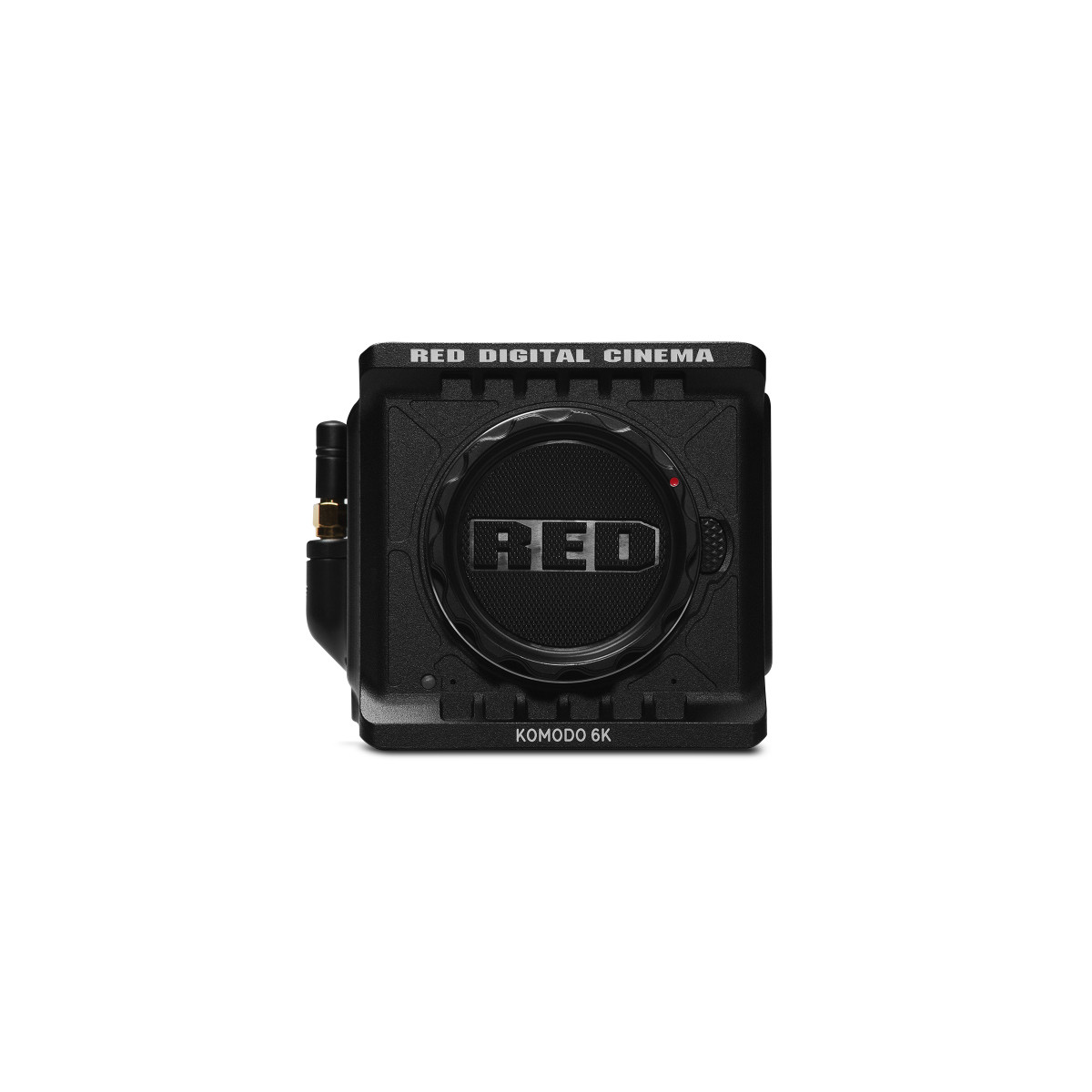

RED Komodo 6K
RED ha compiuto nuovi passi con l'uscita della KOMODO 6K Digital Cinema Camera, portando la loro leggendaria qualità dell'immagine e la scienza del colore in un design ultra-compatto e all-in-one che pesa solo 1 Kg in un corpo molto compatto 10.2 x 10.2 cm.
La chiave per raggiungere questo obiettivo è stata l'uso dell'innesto dell'obiettivo RF Canon e del sensore KOMODO Super35 CMOS da 19,9 MP che vanta la tecnologia Global Shutter.
Questo sensore può creare immagini con una gamma dinamica di 16+ stop ed elimina gli artefatti del rolling shutter. Stanno ottenendo la qualità RED grazie alla possibilità di registrare fino a 6K a 40 fps, 5K a 48 fps, 4K a 60 fps e 2K a 120 fps in REDCODE RAW per un'incredibile flessibilità nella post-produzione.
L'1.5.0 aggiunge il supporto per l'anamorfico 6K, l'audio a 4 canali, FTPS per l'offload remoto, il supporto dell'anello di controllo dell'obiettivo Canon RF e altro, oltre alle schede ExAscend Cfast da 512 GB e 1 TB all'elenco dei media approvati.
| SENSOR TYPE | KOMODO® 19.9 MP Super 35mm Global Shutter CMOS |
|---|---|
| EFFECTIVE PIXELS | 6144 x 3240 |
| SENSOR SIZE | 27.03 mm x 14.26 mm (Diagonal: 30.56mm) |
| DYNAMIC RANGE | 16+ stops |
| MOUNT TYPE | RF mount Accepts Canon RF Mount Based Lenses and Adapters. Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters See Lens Compatibility List for more details |
| MAX DATA RATES | Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards |
| REDCODE® RAW MAX FRAME RATES | 40 fps at 6K 17:9 (6144 x 3240) 50 fps at 6K 2.4:1 (6144 x 2592) 48 fps at 5K 17:9 (5120 x 2700) 60 fps at 4K 17:9 (4096 x 2160) 120 fps at 2K 17:9 (2048 x 1080) |
| PLAYBACK FRAME RATES (PROJECT TIME BASE) | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions |
| AVAILABLE REDCODE® SETTINGS | REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps |
| REDCODE® RAW ACQUISITION FORMATS2 |
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700) 4K 17:9 (4096 x 2160) and 16:9 2K 17:9 (2048 x 1080) |
| APPLE PRORES | 4K (4096 × 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps 2K (2048 × 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps |
| CONSTRUCTION | Aluminum Alloy |
| WEIGHT | 2.10 lbs (without body cap and Cfast card) |

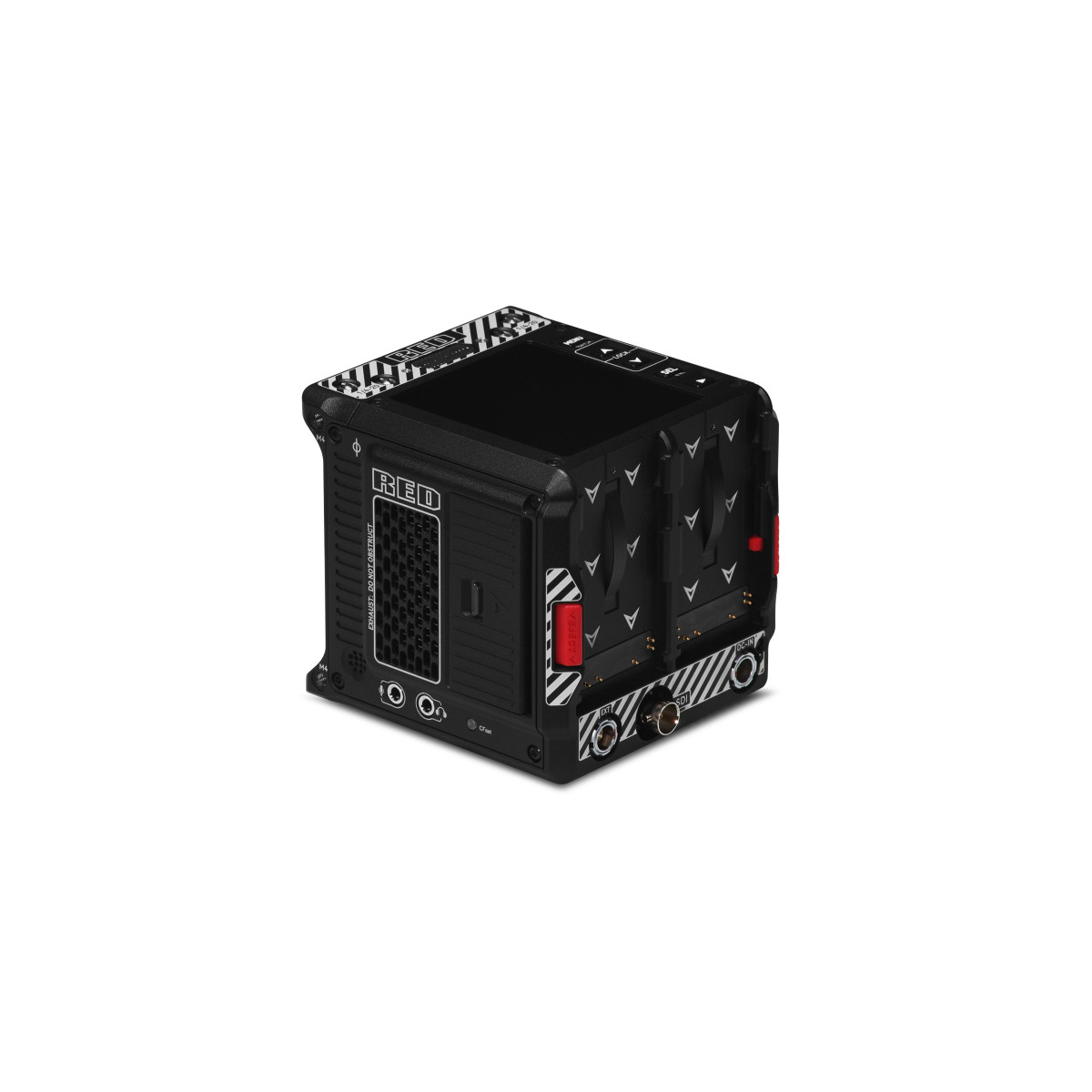

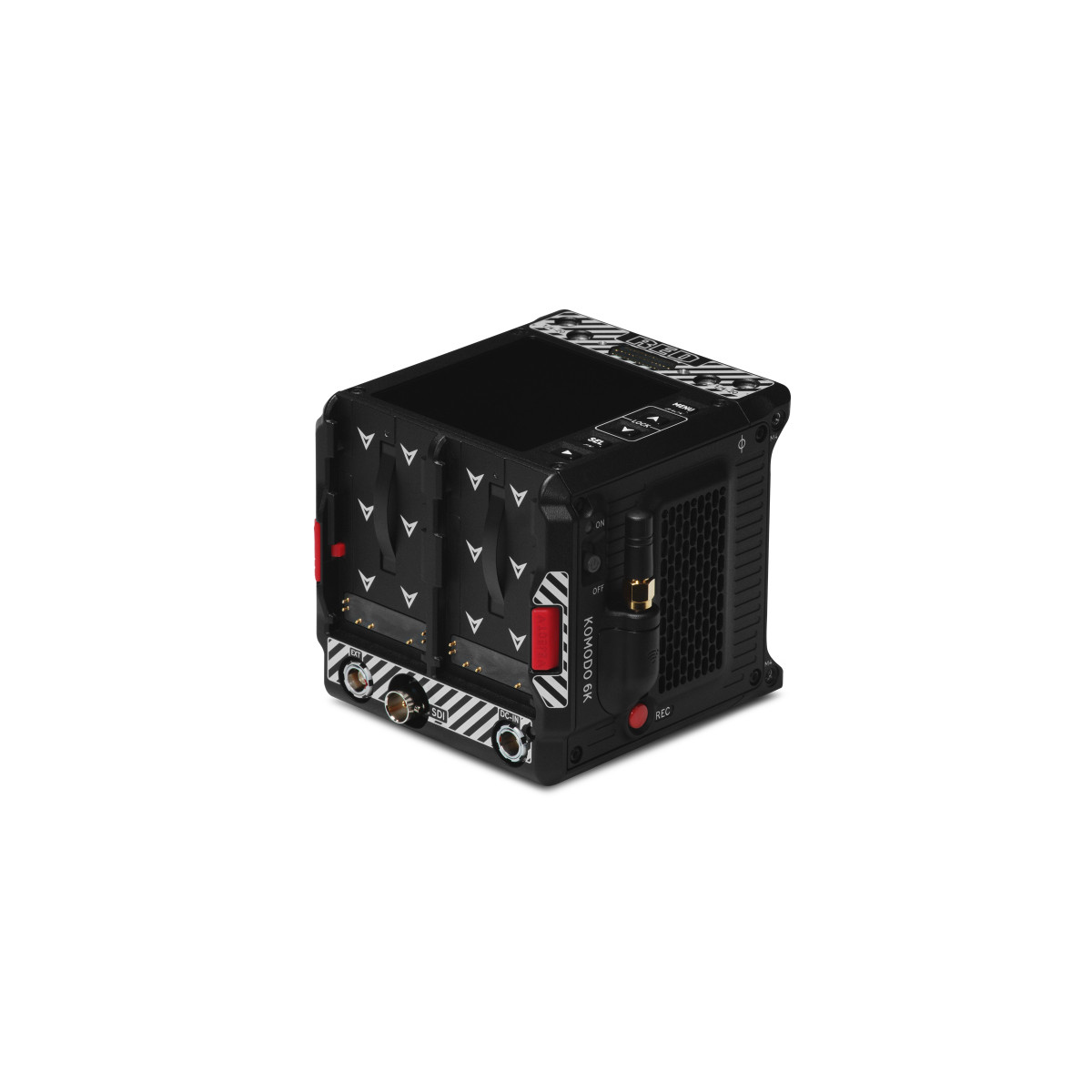

| BATTERY TYPE | Two slots for BP-9XX series batteries |
| DC POWER INPUT | +7 to +17 V DC via the integrated 2-pin DC-IN port |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| STORAGE RELATIVE HUMIDITY | 0% to 85% non-condensing |
| COLOR MANAGEMENT | Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import of CDLs |
| AUDIO | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz |
| REMOTE CONTROL | WiFi for camera control via interchangeable antenna with SMA connection Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed |
| MONITOR OUTPUTS | Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |

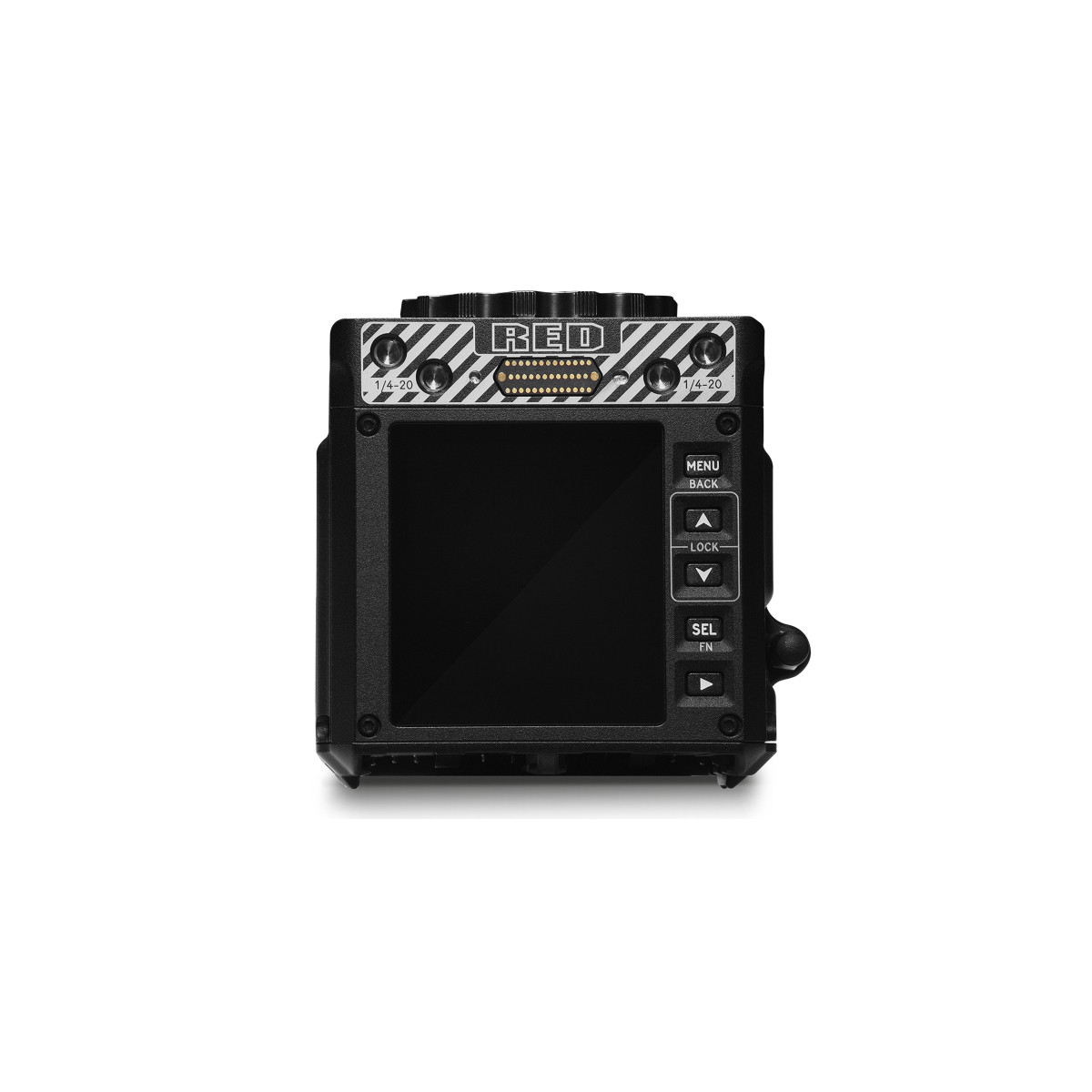

| MONITOR OPTIONS | Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing |
| RED CONTROL | Access full camera controls and live preview from iOS or Android(coming soon) devices. Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately). |
