Panasonic AW-UE80
Brand:

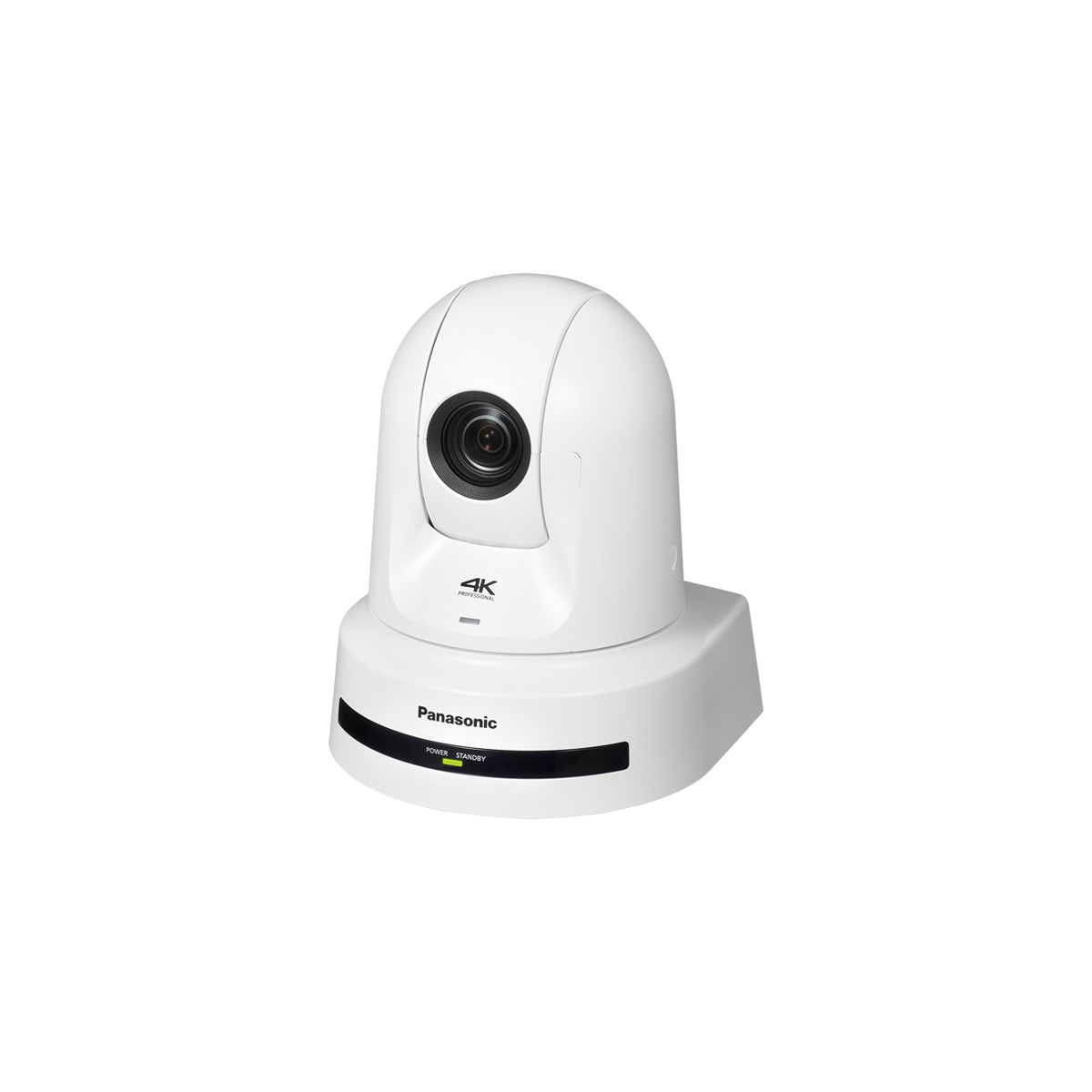

L'AW-UE80W/K è una telecamera PTZ adatta per catturare le espressioni facciali naturali di attori/interpreti e per registrare eventi senza rovinare l'ambiente. Il design a forma di cupola riduce al minimo "la sensazione di essere registrato su video" mentre il nuovo motore a trasmissione diretta produce un suono di funzionamento molto silenzioso in modo da non disturbare le attività di produzione o rovinare l'ambiente.
La fotocamera offre una risoluzione 4K/60p di alta qualità, un ampio angolo di 74,1° e uno zoom ottico con ingrandimento fino a 24x per ottenere una qualità dell'immagine video eccezionale.
L'AW-UE80W/K offre anche un'eccellente stabilità e sicurezza durante lo streaming video, quindi può essere utilizzato per qualsiasi tipo di produzione video. Dalla produzione di un reality show alla registrazione di un evento aziendale o educativo interno, il modello standard top di gamma, AW-UE80W/K, può essere utilizzato in una varietà di applicazioni
Il design poco appariscente, a forma di cupola, si fonde con l'ambiente circostante per ridurre al minimo la "sensazione di essere ripresi in video".
Il suono di funzionamento è basso per essere utilizzato ovunque.
Lo stabilizzatore d'immagine originale garantisce una registrazione video chiara e stabile.
Può essere sospesa al soffitto o montata su un treppiede per effettuare riprese da luoghi in cui è difficile entrare.
La risoluzione 4K, il grandangolo e lo zoom ad alto ingrandimento mantengono intatta "l'atmosfera vivace della sala" nei video in streaming.
Un singolo controller può controllare fino a 200 unità di ripresa.
Supporta FreeD per consentire riprese AR/VR a basso costo.
Cattura rapida dell'oratore con la funzione di tracking automatico integrata.
Riproduzione fluida di video di alta qualità.
Protocollo di streaming sicuro e stabile per ridurre il rischio di problemi di comunicazione.
Compatibile con la piattaforma IT/IP "KAIROS".
AW-UE80
- Risoluzione sensore
- 8,5 MP
- Tipo sensore
- 1/2.5 - MOS
- Zoom
- 24x
- Video I/O
- 3G-SDI OUT
HDMI OUT
| Comprehensive | |||
|---|---|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) | ||
| PoE++* | IEEE802.3bt compliant: DC42 to 57 V (Software authentication (LLDP) is supported) |
||
| Current Consumption | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) | ||
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||
| Allowable Humidity Ranges | 20 ％ to 90 ％ (no condensation) | ||
| Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) | ||
| Mass | Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket), Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket) |
||
| Dimensions (W x H x D) | 170.0 mm x 211.0 mm x 171.0 mm (6.693 inches x 8.307 inches x 6.732inches) |
||
| Finish | AW-UE80W: White AW-UE80K: Black |
||
| Compatible controllers | AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2 | ||
| Camera part | |||
| Image Sensors | 1/2.5-type 4K MOS x 1 | ||
| Effective pixels | Approx. 8,490,000 pixel | ||
| Lens | Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] |
||
| Zoom | • Optical zoom: 24x • i.Zoom UHD 28x, FHD 36x • Digital extender zoom: 1.4x, 2x |
||
| Conversion Lens | Not supported | ||
| Angle of View Range | Horizontal angle of view: 74.1° (wide) to 3.3° (tele) Vertical angle of view: 46.0° (wide) to 1.9° (tele) Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
||
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode") |
||
| Focus | Switching between auto and manual | ||
| Focus Distance | Entire zooming range: 1200 mm (3.9 ft) Wide end: 100 mm (0.33 ft) |
||
| Color Separation Optical System | 1MOS | ||
| Minimum Illumination | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) | ||
| Horizontal Resolution | 1,500 TV Typ (Center area, UHD mode, wide) 1,000 TV Typ (Center area, FHD mode, wide) |
||
| Gain Selection | Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB) | ||
| Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4 | ||
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
| 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
| 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
| 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
| Synchro Scan | 59.94p/59.94i | 60.0 Hz to 7200 Hz | |
| 29.97p | 30.0 Hz to 7200 Hz | ||
| 23.98p/24p | 24.0 Hz to 7200 Hz | ||
| 50p/50i | 50.0 Hz to 7200 Hz | ||
| 25p | 25.0 Hz to 7200 Hz | ||
| Gamma | HD / Normal / Cinema1 / Cinema2 / Still Like | ||
| White Balance | • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.) • AWB: AWB-A / AWB-B • VAR (selectable between 2000 K and 15000 K by designating a value) |
||
| Chroma Amount Variability | OFF, -99 ％ to 99 % | ||
| Output Format | SDI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| HDMI | 4K | 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) | |
| HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
||
| Synchronization System | |||
| Internal/External synchronization (BBS/Tri-level sync) | |||
| Input | |||

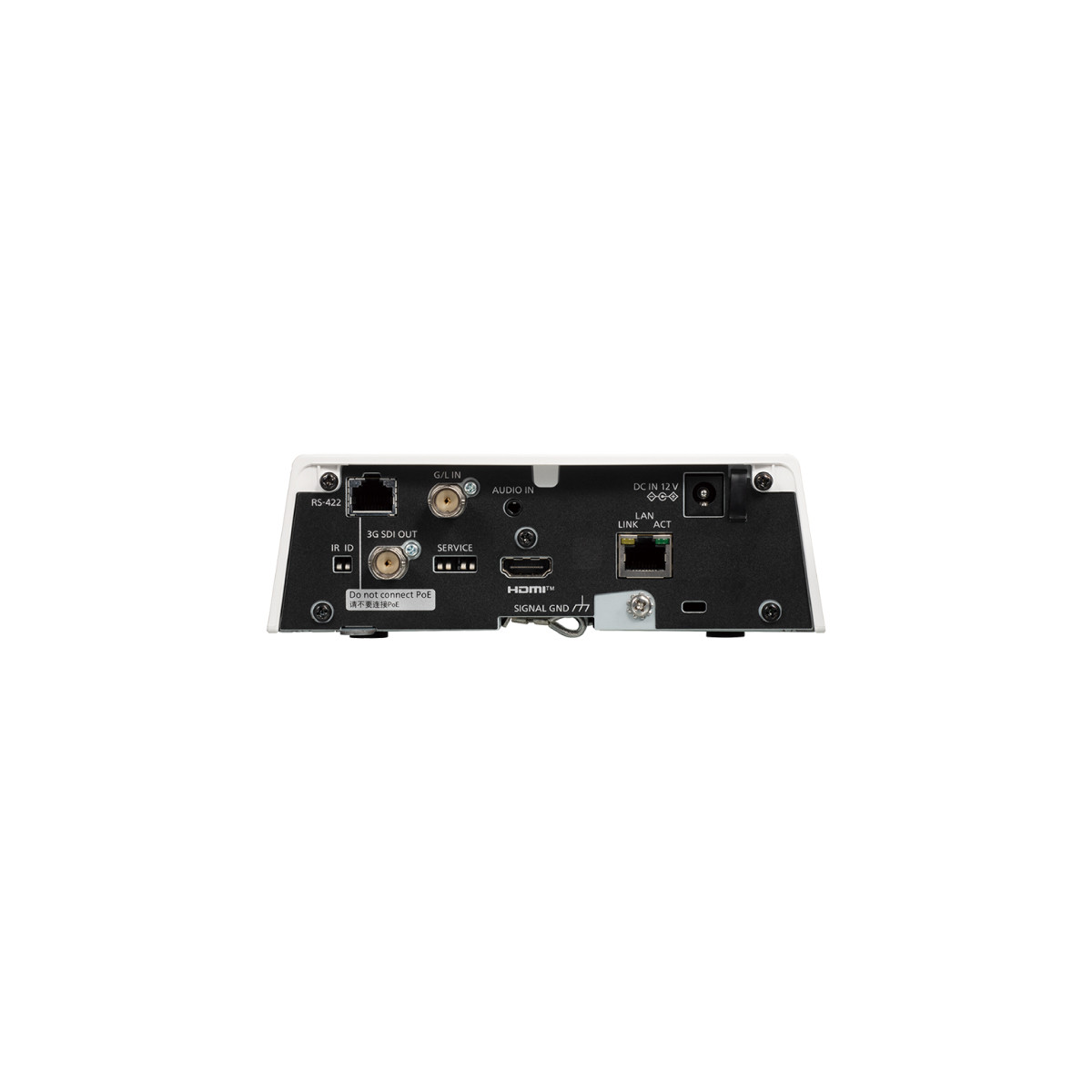

| Input Connector | DC 12 V IN, G/L IN(BNC) BBS (Black Burst Sync), tri-level sync supported) |
||
| Output | |||
| Video Output | HDMI | HDMI 2.0 connector 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
|
| 3G-SDI OUT | SMPTE292M/424M/ 75 Ω(BNC×1) • Level-A/Level-B supported |
||
| Input/output | |||
| Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) | |
| RS-422 | CONTROL IN RS422A(RJ-45) | ||
| MIC/LINE input | AAC compatibility (compatible with IP only) Φ3.5 mm stereo mini jack • During MIC input Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz) Supply voltage: 2.5 V±0.5 V (plug-in power compatible) "• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON) Approx. 20 kΩ (when plug-in power is turned OFF)" • During LINE input Input level: -10 dBV Input impedance: Approx. 3 kΩ • Input volume variable range: -36 dB to 12 dB (3 dB step) • Embedded audio output level: -12 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP) |
||
| Pan-tilt Head Unit | |||
| Camera/Pan-tilt Head Control | IP connecting cable | • If you have a PoE++ ethernet hub LAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft) • If you don't have a PoE++ ethernet hub LAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft) |
|
| AW protocol connecting cable | • LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft) | ||
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 | ||
| Pan/tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode)*8 | ||
| • 3 speed modes installed Normal:60°/s, Fast1:90°/s, Fast2:180°/s |
|||
| Panning Range | ±175° | ||
| Tilting range | -30°to 90°*9 | ||
| Quietness | NC25 or less | ||
| Supported Operating Systems and Web Browsers | Windows*10 | Windows 10 Windows® Internet Explorer® 11(32 bit / 64 bit) Microsoft Edge Google Chrome |
|
| Mac*10 | Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome |
||
| iPhone / iPad*10 | iOS Safari iPadOS |
||
| Android*10 | Android OS Google Chrome |
||
| IP Streaming | |||
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI® | ||
| Image Resolution | 1920×1080, 1280×720, 640×360, 320×180 | ||
| Image Transmission Setting | JPEG | Frame rate: Maximum 30fps Image quality (Fine / Normal) |
|
| H.264 | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
|
| Transmission Priority | Constant bit rate Frame rate Best effort |
||
| Frame Rate | [60 Hz] 5fps / 15fps / 30fps / 60fps [50 Hz] 5fps / 12.5fps / 25fps / 50fps |
||
| Max Bit Rate | 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbp | ||
| H.265 | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
|
| Frame Rate | [60 Hz] 30fps / 60fps [50 Hz] 25fps / 50fps |
||
| Max Bit Rate | 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps | ||
| Audio Compression Type | AAC-LC, 48 kHz, 16 bit, 2 ch | ||
| Supported Protocols | Network Protocol | ICMP, ARP, GARP, MLD | |
| Transmission Protocol | TCP/IP, UDP/IP | ||
| IPv4 | HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X | ||
| IPv6 | HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X | ||
| Video Streaming Protocol | RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI® |HX version 2, High bandwidth NDI® |
||
| External Device Cooperation Protocol | FreeD, TSL5.0, SNMP | ||
| NDI® Support | |||
| NDI Support | NDI®|HX version 2: Included as standard High Bandwidth NDI®: Included as standard*14 |
||
| Output format | High Bandwidth NDI® | 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p | |
| Image Resolution (NDI®|HX version 2) |
1920x1080, 1280x720 | ||
| Image Transmission Setting | High Bandwidth NDI® | Transmission Type | TCP/UDP, Unicast/Multicast |
| Max Bit Rate | 250 Mbps | ||
| NDI®|HX version 2 | Transmission Type | TCP/UDP, Unicast/Multicast | |
| Flame rate | [60 Hz] 5fps/15fps/30fps/60fps [50 Hz] 5fps/12.5fps/25fps/50fps |
||
| Max bit rate | 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps | ||
| Audio Compression Type | High Bandwidth NDI® | AAC, 48 kHz, 2 ch | |
| NDI®|HX version 2 | AAC-LC, 48 kHz, 16 bit, 2 ch | ||
| New functions | |||
| NDI Support | NDI® NDI®|HX Ver.2: Included as standard High Bandwidth NDI®: Included as standard |
||
| F-number display | Displayed on the AW-RP150GJ and AW-RP60GJ sides | ||
| Menu display on IP video | Supported*15 | ||
| VR Support (IP/RS422) | Compatible with FreeD | ||
| Power LED | ON/OFF control | ||
| Tripod screw penetration measures | Possible | ||
| Pan/tilt mechanical method | New Direct Drive System | ||
| Image Stabilization | OIS 2-axis MENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT) |
||
| Privacy Mode | The lens surface faces backward when standing by (ON/OFF) * Default is OFF |
||
| Other functions | |||
| Tally LED Display Color | red / green | ||
- * In normal use within the ambient operating temperature range, the PoE+ switch will also work.
However, the camera may stop operating or the power supply may be stopped depending on the specifications of the PoE+ switch when the power load exceeds the PoE+ specified power when abnormalities such as pan/tilt is stopped due to external forces or when the ambient temperature has changed significantly. Operation with PoE+ switch is not guaranteed, so please check the operation in advance under the condition of use, and judge the use by yourself.
- *1: Discontinued Model
- *2: Will be supported in the future
- *3: Can be set in 1 dB step increments.
- *4: Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.
- *5: STP (Shielded Twisted Pair) is recommended.
- *6: Use Category 6 or higher when transmitting 4K video.
- *7: To ensure safety, the unit must be secured using the mount bracket supplied.
- *8: Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.
- *9: The main unit may appear in the video depending on the pan/tilt position.
- *10: Supported OS indicated are for browsers current as of August 2020. See “Service and Support / PASS” for the latest information on browser support.
- *11: NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.
- *12: NDI® is a registered trademark of NewTek, Inc. in the United States and other countries.
- *13: In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE80 supports NDI®|HX version 2 and Full HD output.
- *14: Simultaneous operation with the AW protocol is not possible.
- *15: Non-synchronous with SDI-OUT
