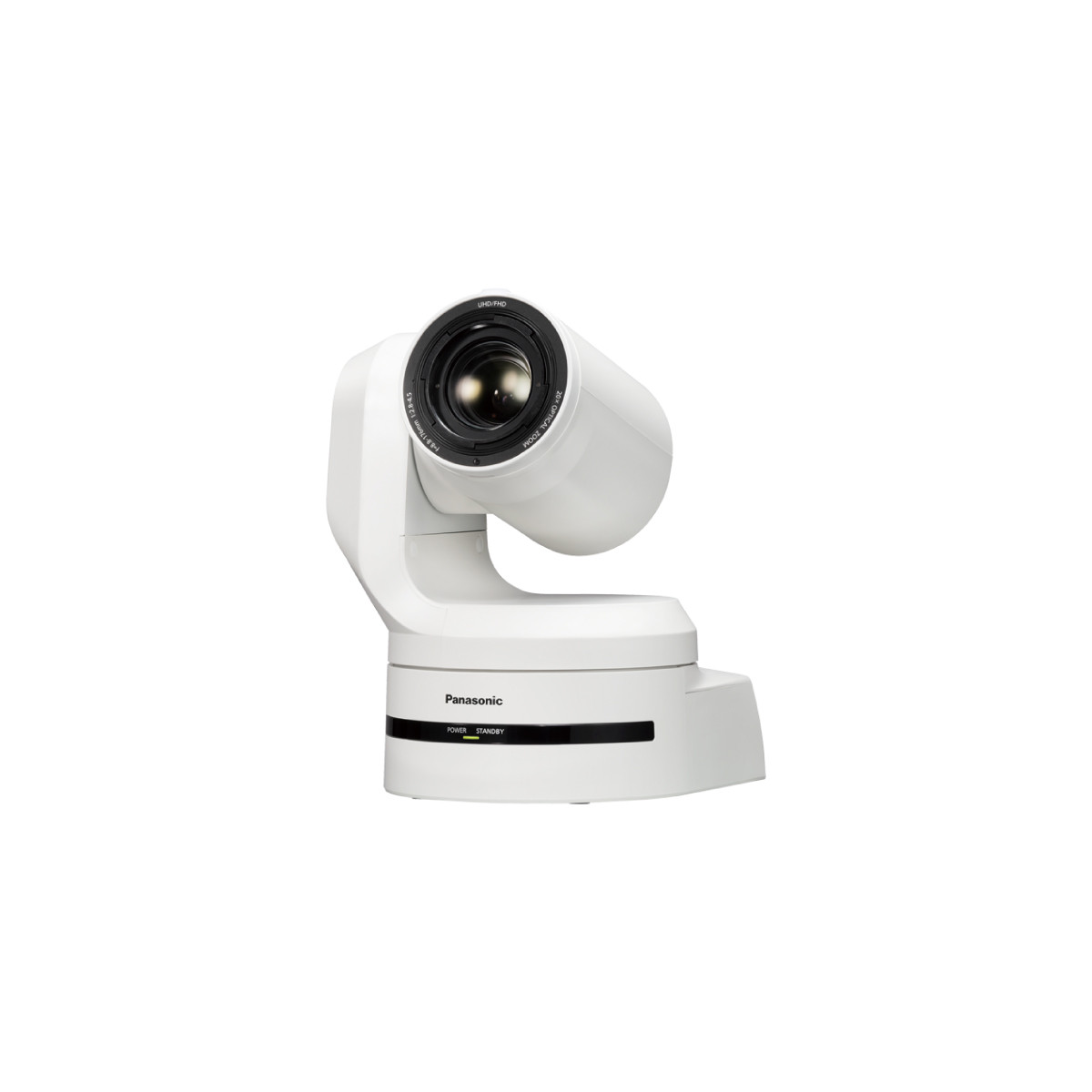

Panasonic AW-HE145
Brand:
La videocamera HD integrata AW-HE145 realizza un'elevata sensibilità di F9/2000lx con il sensore MOS da 1" montato e può eseguire splendide riprese in occasione di eventi teatrali o funzioni religiose in condizioni di scarsa illuminazione.
Il meccanismo di funzionamento ha lo stesso design del modello di fascia alta, quindi le prestazioni operative di pan/tilt e zoom sono fluide e precise, consentendoti di riprendere senza stress.
Inoltre, è dotato di uno zoom ottico 20x e di un obiettivo grandangolare orizzontale da 75,1° per realizzare produzioni video flessibili.
Telecamera remota HD che consente una produzione video di alta qualità anche in ambienti bui.
La telecamera integrata HD AW-HE145 realizza un'elevata sensibilità di F9/2000lx grazie al sensore MOS di tipo 1.0 montato e può effettuare splendide riprese in occasione di eventi teatrali o funzioni religiose con scarsa illuminazione.
Il meccanismo di funzionamento ha lo stesso design del modello di fascia alta, quindi le prestazioni di pan/tilt e zoom sono fluide e precise, consentendo di effettuare riprese senza stress. Inoltre, è dotato di uno zoom ottico 20x e di un obiettivo grandangolare orizzontale da 75,1° per realizzare una produzione video flessibile.
Sensore MOS di tipo 1.0 montato (sensibilità: F9/2000 lx)
Zoom ottico 20x / La migliore ripresa grandangolare orizzontale da 75,1° del settore
Incredibili prestazioni di panoramica e inclinazione
Riprese Full-HD 60p/50p di alta qualità
Supporto HDR (HLG)
Supporto della modalità notturna
La matrice adattiva impedisce il sovraccarico di colore dei LED blu
Stabilizzatore ottico d'immagine (OIS) caricato
Funzione di salvataggio delle immagini JPEG in dotazione
Supporto SRT per una trasmissione video stabile su linee pubbliche
Compatibilità NDI | HX per un'eccellente qualità di streaming video
Trasmissione diretta tramite RTMP (Real-Time Messaging Protocol)
Interfacce multiple supportate
Connessione AW-RP150 per sistemi di produzione su larga scala
Controllato dall'interfaccia web
AW-HE145
- Risoluzione sensore
- 20 MP
- Tipo sensore
- 1" - MOS
- Zoom
- 20x
- Video I/O
- 3G-SDI OUT
HDMI OUT
| General | |
|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Mass | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| Dimensioni (LxAxP) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| Finish | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| Camera Unit | |
| Imaging Sensors | 1-type Full-HD MOSx1 |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Zoom | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Color Separation Optical System | 1MOS |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Horizontal Resolution | 1000 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability | OFF, –99 % to 99 % |
| Scene File | Scene1, Scene2, Scene3, Scene4 |
| Output Format | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |
| Input | |
| Input Connector | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| Output | |
| Video Output | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| Input/Output | |
| Input/Output Connector | LAN LAN connector for IP control (RJ‑45) RS-422 CONTROL IN RS-422A (RJ‑45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV |
| Pan-Tilt Head Unit | |
| Camera/Pan-Tilt Head Control | IP connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) |

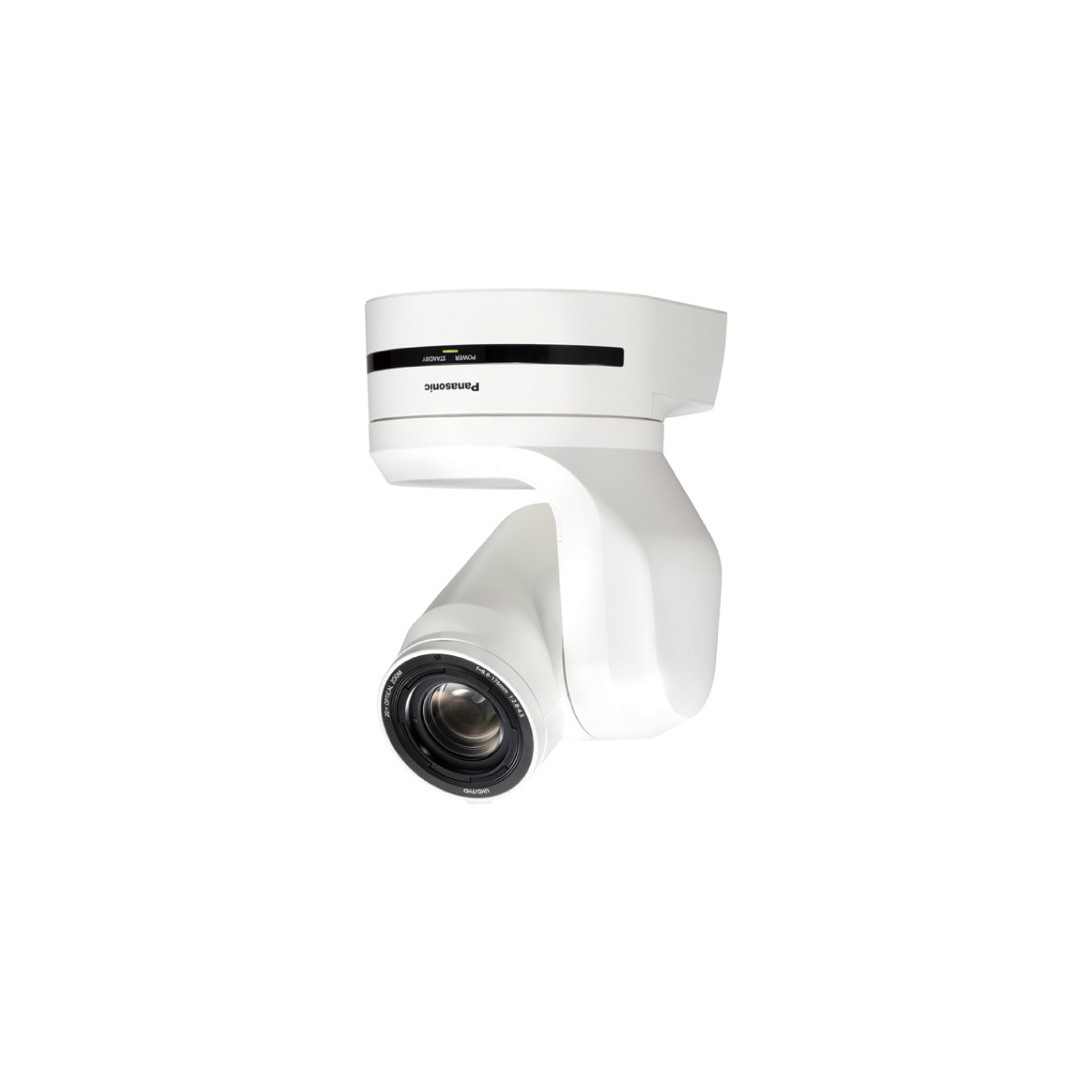

| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 |
| Pan/Tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher*8 • Maximum speed is 180°/s in high-speed mode |
| Panning Range | ±175° |
| Tilting Range | –30° to 210°*9 |
| Quietness | NC35 or less |
| Supported Operating Systems and Web Browsers*10 | |
| Supported operating systems and web browsers | Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome |
| IP Streaming | |
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 |
| Image Resolution | |
| 1920x1080, 1280x720, 640x360, 320x180 | |
| Image Transmission Setting | JPEG Frame Rate: Maximum 30 fps, Image quality (Fine / Normal) H.264 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps H.265 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps NDI|HX Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.264 Transmission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.265 Transimission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps RTMP/RTMPS Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch |
| Supported Protocol | IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP |
| Other Function | |
| NDI Support*11 | NDI | HX |
| Tally LED display color | red / green |
| Note | *1: Available in September 2021. *2: 1 dB step increments can be set. *3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. *4: Native output. *5: It denotes “1080/23.98p over 59.94i”. *6: Use of an STP (shielded twisted pair) cable is recommended. *7: To ensure safety, the unit must be secured using the mount bracket supplied. *8: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. *9: Depending on the pan or tilt position, the camera may be reflected in the image. *10: Supported OS indicated are for browsers current as of October 2018. See Service and Support (https://eww.pass.panasonic.co.jp/p2ui/guest/TopLogin.do?lang=en&category=pav) for the latest information on browser support. *11: Contact your local Panasonic vendor for further information. |
